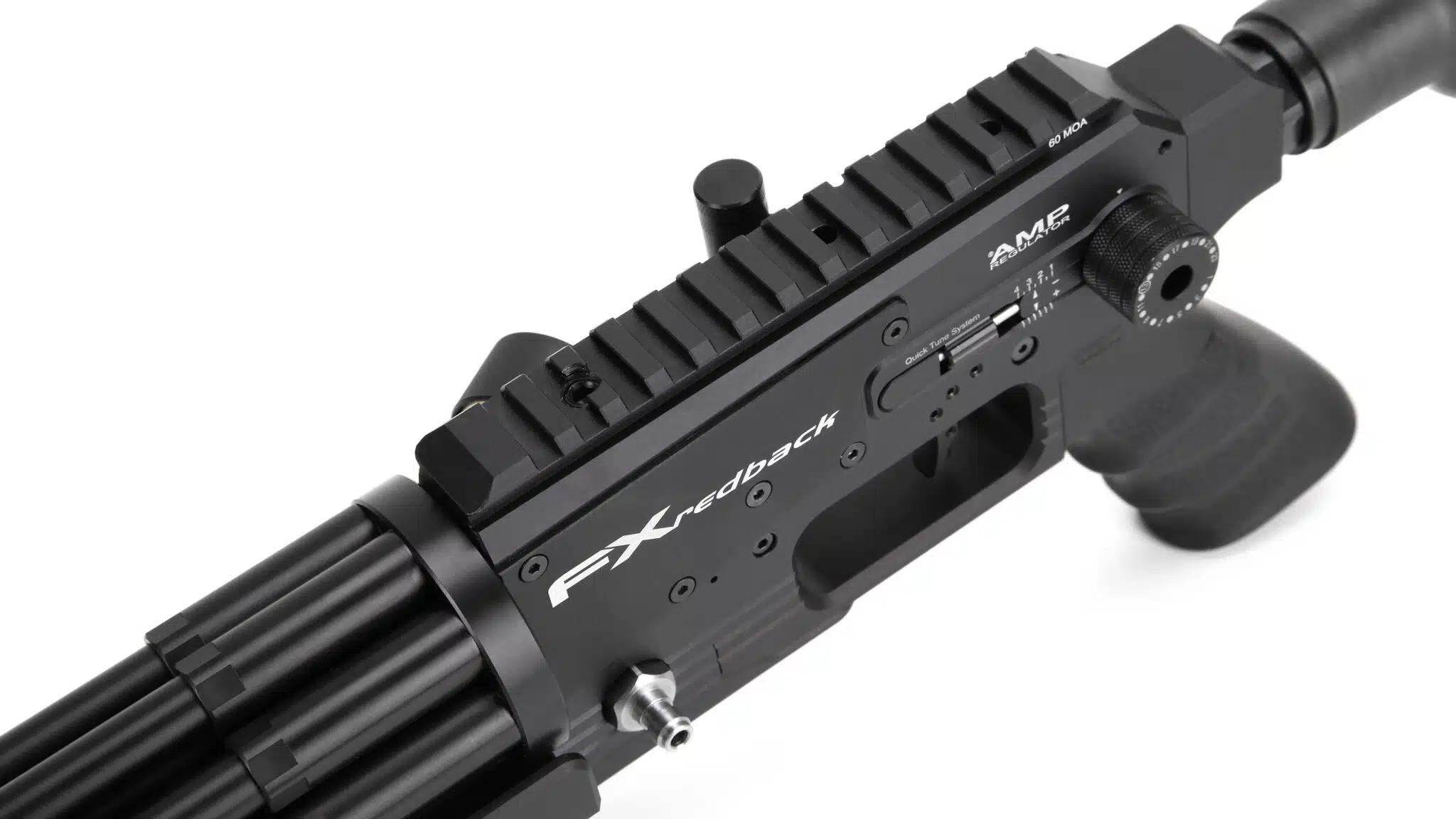

FX Redback Standard Arrow Airgun
$2,240.99
FX Redback Standard Arrow Airgun
8-Shot Arrow Drum. AMP MKII Regulator. Purpose-Built Arrow Platform.
The FX Redback is a completely new take on air-powered hunting — designed from the ground up as a dedicated arrow shooter, not a modified pellet rifle. Featuring an 8-shot rotating arrow drum, smooth side-lever action for rapid follow-up shots, AMP MKII regulator, 480cc carbon fiber bottle, Quick Tune System, fully adjustable trigger, 60 MOA Picatinny rail, full-length ARCA rail, and M-LOK slots — delivering up to 425 fps and 150 FPE with 375-grain arrows in a compact, modern platform.
⚠️ Scope and arrows not included.
Overview

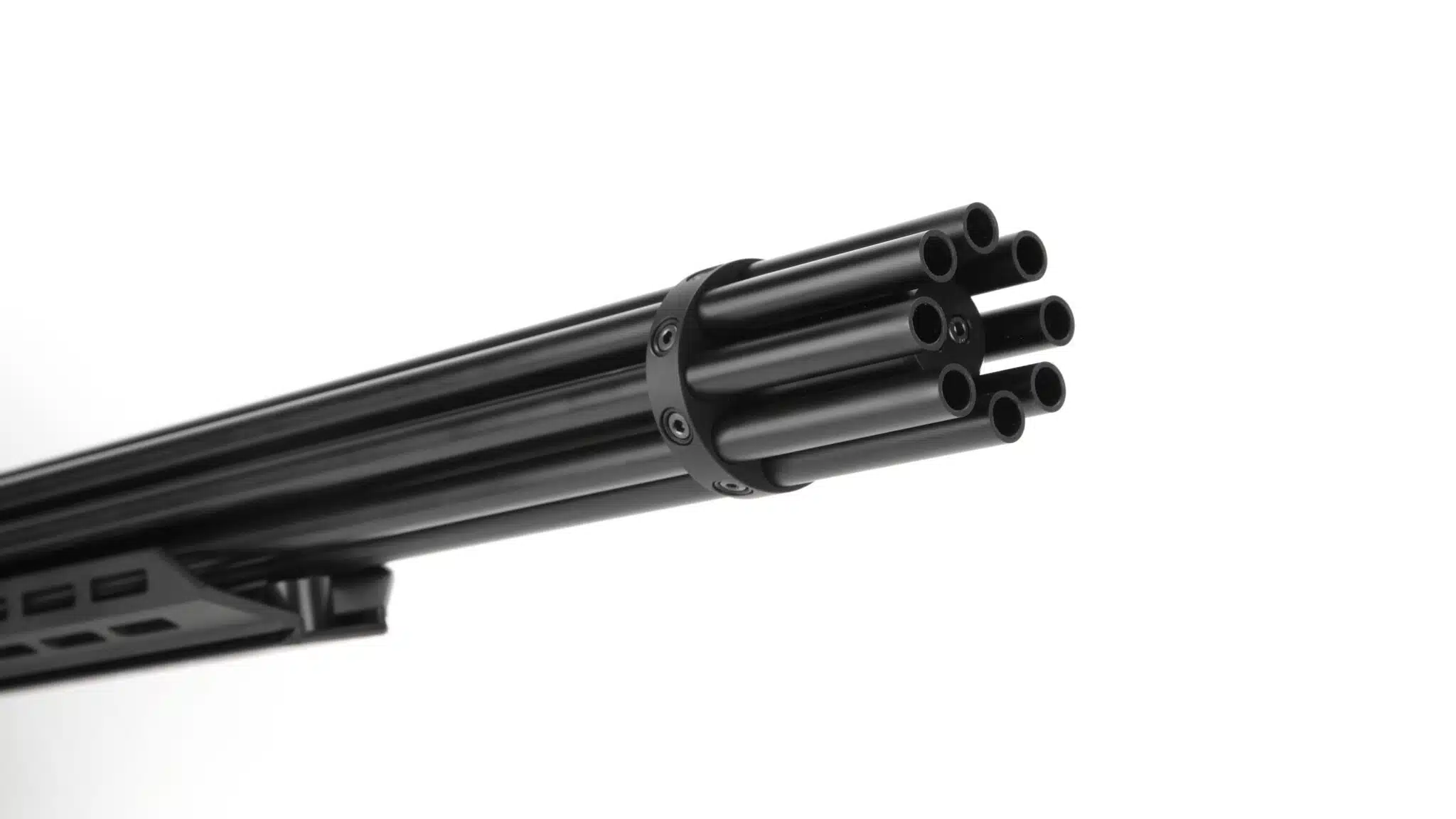

The Redback's 8-shot rotating arrow drum enables rapid cycling and follow-up shots that no single-shot arrow platform can match — the smooth side-lever action loads the next arrow with each stroke for fast, reliable operation in the field. The AMP MKII regulator with dual angled Wika pressure gauges — one for bottle, one for regulator — provides consistent regulated performance at 140–150 BAR, and the externally adjustable regulator, hammer spring tension power wheel, and Quick Tune System allow velocity tuning from full-power hunting performance down to 290–350 fps for close-range practice and penetration control. The 480cc carbon fiber bottle delivers 8 full-power shots per fill.
Key Features
- Purpose-built dedicated arrow launching platform
- 8-shot rotating arrow drum for fast follow-up shots
- Smooth side-lever action — cycles next arrow with each stroke
- AMP MKII regulator with dual angled Wika pressure gauges
- Externally adjustable regulator — factory set 140–150 BAR
- Hammer spring tension power wheel
- Quick Tune System for easy velocity adjustment
- Fully adjustable trigger system
- 480cc carbon fiber bottle — 250 BAR (3,625 PSI) fill pressure
- Up to 425 fps / 150 FPE with 375-grain arrows
- Tunable down to 290–350 fps for practice and penetration control
- 60 MOA Picatinny rail for long-range optics setup
- Full-length ARCA rail for tripod and accessory mounting
- M-LOK compatible slots for lights, bipods, and accessories
- Integrated cheek rest and adjustable buttpad
- .357 caliber / 22" barrel
- 41.5" overall length at 7.1 lbs
- Hard carrying case included
Performance
| Spec | Value |
|---|---|
| Arrow Weight | 375 grains |
| Max Velocity | 425 fps |
| Max Energy | 150 FPE (~203 Joules) |
| Tuned Down Range | 290–350 fps |
| Shots Per Fill | 8 full-power shots |
Specifications
| Spec | Value |
|---|---|
| Caliber | .357 |
| Action | Side lever |
| Barrel Length | 22 inches |
| Overall Length | 41.5" (1,055mm) |
| Weight | 7.1 lbs (3.22 kg) |
| Air Bottle | 480cc Carbon Fiber |
| Fill Pressure | 250 BAR (3,625 PSI) |
| Regulator | AMP MKII (140–150 BAR) |
| Arrow Capacity | 8-shot rotating drum |
| Picatinny Rail | 60 MOA |
| ARCA Rail | Full-length |
| Accessory Slots | M-LOK |
What's Included
- FX Redback Standard Arrow Airgun
- Molded hard carrying case
- Fill adapter
Specifications
Standard Specification From Factory
| Manufacturer | FX Airguns |
|---|
FX Redback Standard Arrow Airgun
8-Shot Arrow Drum. AMP MKII Regulator. Purpose-Built Arrow Platform.
The FX Redback is a completely new take on air-powered hunting — designed from the ground up as a dedicated arrow shooter, not a modified pellet rifle. Featuring an 8-shot rotating arrow drum, smooth side-lever action for rapid follow-up shots, AMP MKII regulator, 480cc carbon fiber bottle, Quick Tune System, fully adjustable trigger, 60 MOA Picatinny rail, full-length ARCA rail, and M-LOK slots — delivering up to 425 fps and 150 FPE with 375-grain arrows in a compact, modern platform.
⚠️ Scope and arrows not included.
Overview
The Redback's 8-shot rotating arrow drum enables rapid cycling and follow-up shots that no single-shot arrow platform can match — the smooth side-lever action loads the next arrow with each stroke for fast, reliable operation in the field. The AMP MKII regulator with dual angled Wika pressure gauges — one for bottle, one for regulator — provides consistent regulated performance at 140–150 BAR, and the externally adjustable regulator, hammer spring tension power wheel, and Quick Tune System allow velocity tuning from full-power hunting performance down to 290–350 fps for close-range practice and penetration control. The 480cc carbon fiber bottle delivers 8 full-power shots per fill.
Key Features
- Purpose-built dedicated arrow launching platform
- 8-shot rotating arrow drum for fast follow-up shots
- Smooth side-lever action — cycles next arrow with each stroke
- AMP MKII regulator with dual angled Wika pressure gauges
- Externally adjustable regulator — factory set 140–150 BAR
- Hammer spring tension power wheel
- Quick Tune System for easy velocity adjustment
- Fully adjustable trigger system
- 480cc carbon fiber bottle — 250 BAR (3,625 PSI) fill pressure
- Up to 425 fps / 150 FPE with 375-grain arrows
- Tunable down to 290–350 fps for practice and penetration control
- 60 MOA Picatinny rail for long-range optics setup
- Full-length ARCA rail for tripod and accessory mounting
- M-LOK compatible slots for lights, bipods, and accessories
- Integrated cheek rest and adjustable buttpad
- .357 caliber / 22" barrel
- 41.5" overall length at 7.1 lbs
- Hard carrying case included
Performance
| Spec | Value |
|---|---|
| Arrow Weight | 375 grains |
| Max Velocity | 425 fps |
| Max Energy | 150 FPE (~203 Joules) |
| Tuned Down Range | 290–350 fps |
| Shots Per Fill | 8 full-power shots |
Specifications
| Spec | Value |
|---|---|
| Caliber | .357 |
| Action | Side lever |
| Barrel Length | 22 inches |
| Overall Length | 41.5" (1,055mm) |
| Weight | 7.1 lbs (3.22 kg) |
| Air Bottle | 480cc Carbon Fiber |
| Fill Pressure | 250 BAR (3,625 PSI) |
| Regulator | AMP MKII (140–150 BAR) |
| Arrow Capacity | 8-shot rotating drum |
| Picatinny Rail | 60 MOA |
| ARCA Rail | Full-length |
| Accessory Slots | M-LOK |
What's Included
- FX Redback Standard Arrow Airgun
- Molded hard carrying case
- Fill adapter
Specifications
Standard Specification From Factory
| Manufacturer | FX Airguns |
|---|
