Kestrel 5700 Elite Weather Meter with Applied Ballistics and LiNK (Blaze)

Every Variable. Every Shot. First Round Hits at Extreme Range.

The Kestrel 5700 Elite with Applied Ballistics and LiNK is the most comprehensive field weather and ballistics solution available for serious long-range shooters. Combining precise measurement of up to 15 environmental parameters with the industry-leading Applied Ballistics engine — including custom drag models, Aerodynamic Jump, Spin Drift, Coriolis, and Drop Scale Factor corrections — the 5700 Elite gives you everything you need to hit your long-range shot on the first try, in any condition. Now in bold Blaze color.

Overview

The Applied Ballistics bullet library with custom drag models provides an exact measurement of your bullet's drag profile for the most accurate ballistic solutions available at any range. Bluetooth LiNK connectivity pairs the meter wirelessly with your smartphone via the Kestrel LiNK Ballistics app — loading your gun and ammunition profiles directly into the meter for seamless, real-time ballistic solutions in the field. Store up to 30 gun profiles, access over 225 long-range bullet BCs, and select G1, G7, or custom drag curves for the most precise trajectory calculations available in a handheld device. The improved high-resolution screen is readable in any lighting condition including direct sunlight, and both Red NV and White backlights are included for day and night use.

Key Features

• Measures up to 15 environmental parameters — wind speed and direction, temperature, humidity, heat index, pressure, altitude, density altitude, crosswind, headwind/tailwind, and more
• Applied Ballistics engine with custom drag model bullet library — over 225 long-range bullets
• G1, G7, and custom drag curve support for maximum ballistic precision
• Corrections for Aerodynamic Jump, Spin Drift, Coriolis, and Drop Scale Factor
• Ballistic calibration (truing) feature — train the solver based on actual bullet impacts
• Customizable Range Card and expanded Ballistics Data Table
• Store up to 30 gun profiles with one bullet each
• Bluetooth LiNK connectivity — up to 100 feet wireless range

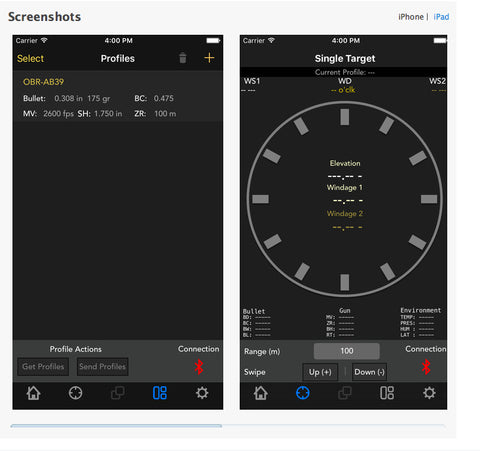

• Compatible with Kestrel LiNK Ballistics app for iOS and Android
• Compatible with Bushnell Elite 1 Mile CONX rangefinder via LiNK
• Improved high-resolution screen — readable in sunlight and easy on eyes
• Red NV and White backlight options — red backlight uses optical filter to preserve night vision
• Intuitive user-interface screen navigation
• Multiple languages — English, French, German, Spanish
• Scratch and breakage-resistant window
• Single AA battery
• Battery door sealed on back — protected from motherboard in case of battery leak
• Blaze colorway



Applied Ballistics vs. Horus — What's the Difference?

The Applied Ballistics version offers G1, G7, and custom drag profile support, Drop Scale Factor truing, bullet length input for spin drift calculation, +/- angle input, Crosswind Jump correction, and automatic environmental adjustment when moving between drastically different conditions. The Horus version supports G1 only and custom curves require manual user input. For serious long-range shooting, Applied Ballistics is the clear choice.

Do You Need Bluetooth?

Most data can be entered manually — but custom drag curves beyond the 7 preloaded profiles require the LiNK app or USB cable to download. Bluetooth is also required to connect with compatible rangefinders and scopes, and all meter firmware updates are delivered via the LiNK app. For full functionality, the LiNK version is strongly recommended.

What's New Over the Kestrel 4500 AB Series

• Bluetooth LiNK for smartphone connectivity (iOS and Android)
• Single AA battery replaces 2 AAA
• Rear-sealed battery door protects motherboard from battery leaks
• Improved high-resolution sunlight-readable display
• More intuitive user interface navigation
• Multi-language support
• Scratch and breakage-resistant window



Specifications

What's the difference between the Elite version and the 5700 basic version?

Here is an easy comparison chart showing the differences.

How do I use the Kestrel 5700 Elite Applied Ballistic meter?

Please see this simple manual explaining how it works.
